Datadog


Learn how to use Datadog to automatically keep status of your Golive environments up to date


Integrate Golive with Datadog Synthetic Monitoring

Datadog Synthetic Monitoring allows to easily check availability of your applications.
Learn more: https://docs.datadoghq.com/synthetics/

In this section, you will learn how to configure Datadog in order to automatically update the status of Golive environments when an alert or a recovery event is raised by Datadog

Ensure to have installed version 9.6.4 (or higher) of Golive

If you do not have an existing Datadog account, you can easily create a free account to perform this tutorial: https://app.datadoghq.com/signup




Connect Datadog with Golive API

Datadog will be the master system in charge to notify Golive when an environment is up or down. In order to do that, we must setup a connection between Datadog and the Golive Rest API. This connection will be used to update status of the Golive environments that are monitored by Datadog.

STEP 1 Open the Webhooks configuration page

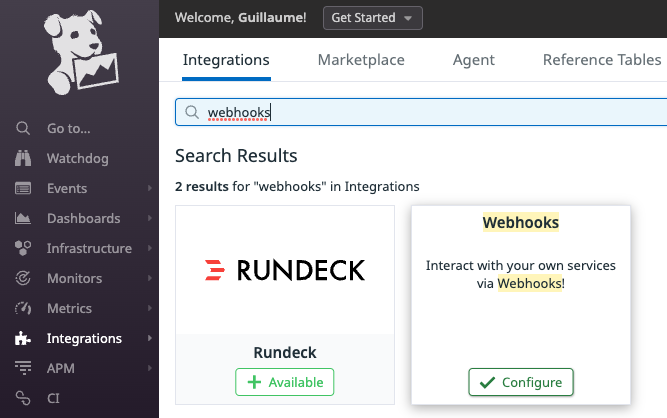

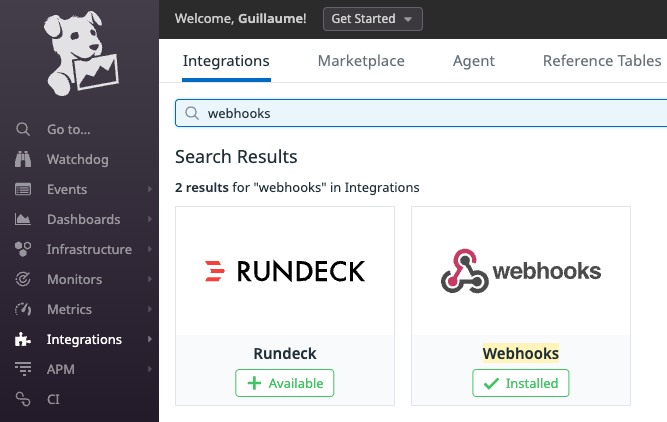

Go to “Integrations” section and search for the “Webhooks” integration:

Select the “Webhooks” integration and click on “Configure” button to configure a connection with Golive:

STEP 2 Create a variable to store the Golive credentials

Create a new variable to store the credentials that you will need to connect to Golive REST API:

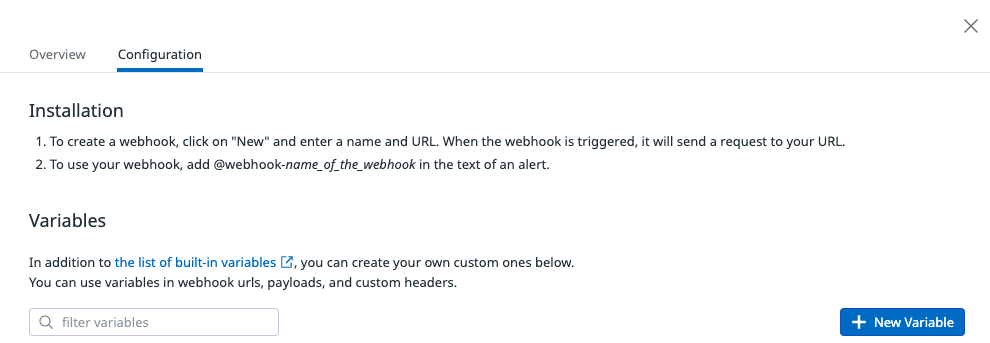

  • Click on “New Variable” button:

  • name the new variable “GOLIVE_BEARER_TOKEN”

  • prepare a new Basic Auth token that will be stored as “VALUE”

    • Type “Basic “ in front of your token in “VALUE” field

    • your Bearer token must respect this structure:

      CODE
      Basic your_pasted_api_golive_token

Golive REST api use the same authentification engine as Jira: https://developer.atlassian.com/server/jira/platform/basic-authentication/.
Here is another good tutorial explaining how it works and how you can easily generate basic authentication tokens: https://www.baeldung.com/java-postman-authentication

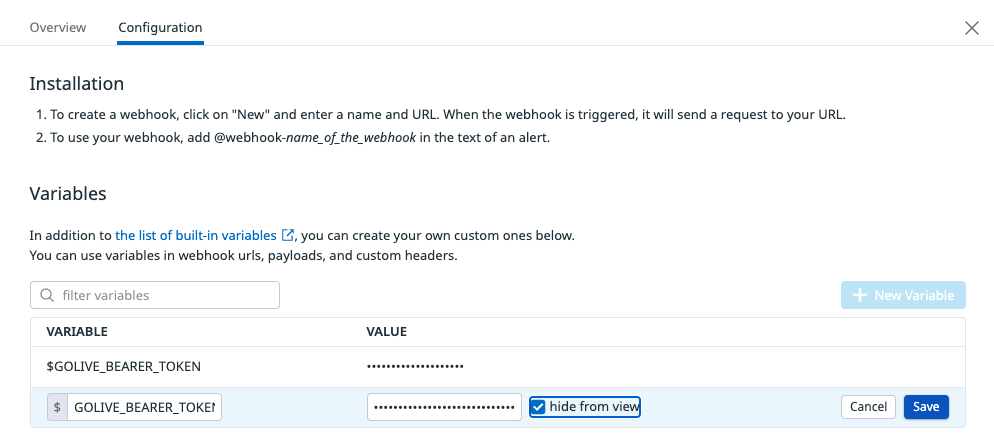

  • check the “hide from view” option:

  • Click on “Save”

STEP 3 Configure a webhook to mark Golive environments as “Down”

Create a new Datadog webhooks to be used when a Golive environment status must be set to “Down”

  • Click on “New” to create a new webhook:

  • Choose an explicit “Name”, for example: “golive-status-change-down”

  • use the following endpoint as “URL”:

CODE
https://golive.apwide.net/api/status-changes
  • use the following json as “Payload”:

JSON
{
  "scope": {
    "criteria": [
      {
        "name": "environmentId",
        "values": [
          "$TAGS[golive_env_id]"
        ]
      }
    ]
  },
  "status": {
    "name": "Down"
  }
}
  • activate the “Custom Headers” checkbox

  • use the following json as “Custom Headers”:

JSON
{
"Authorization": "$GOLIVE_BEARER_TOKEN"
}
  • ensure that “Encode as form” is NOT checked

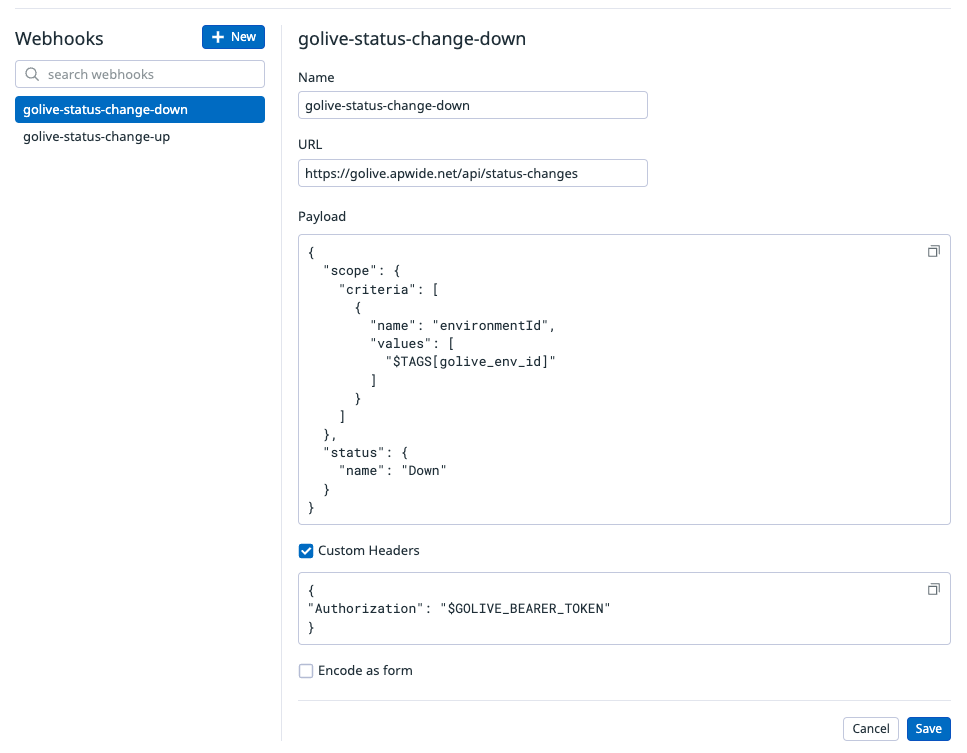

  • check that your configuration looks like that:

This will work if the default environment status called “Down” exists.
If you have renamed it, change “Down” to your custom environment status name in the JSON payload.

  • click on “Save”

STEP 4 Configure a webhook to mark Golive environments as “Up”

Create a new Datadog webhooks to be used when a Golive environment status must be set to “Up”

→ execute the same action as described in STEP 3 but replacing everywhere “Down” by “Up”¨

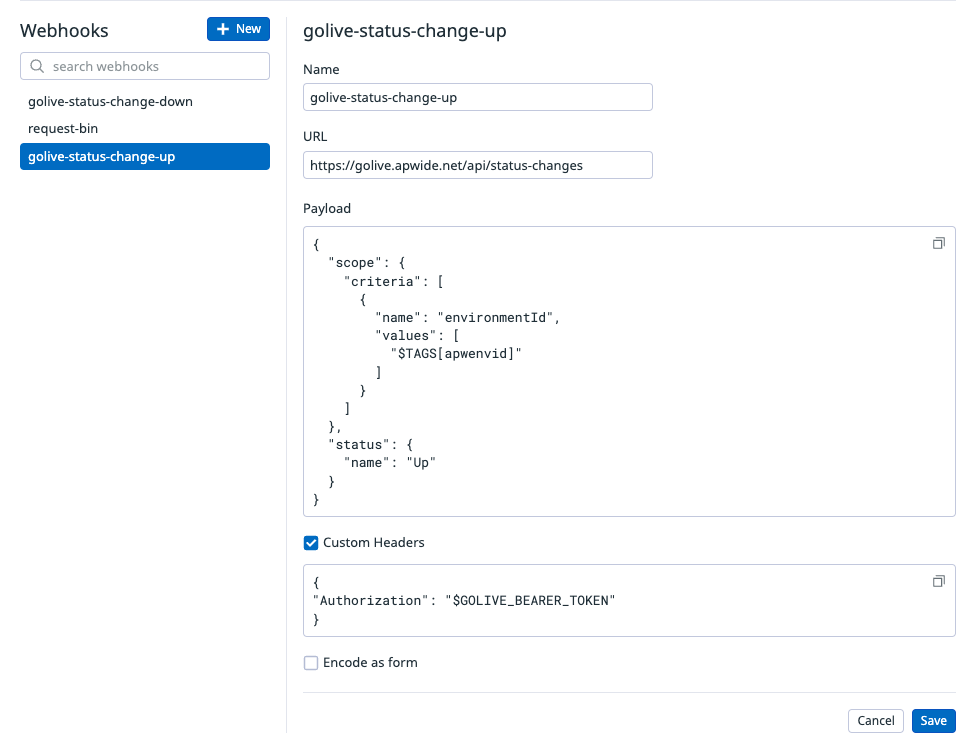

You should end with such a webhook configuration:

This will work if the default environment status called “Up” exists.
If you have renamed it, change “Up” to your custom environment status name in the JSON payload.

STEP 5 Ensure that the 2 Golive webhooks are properly created

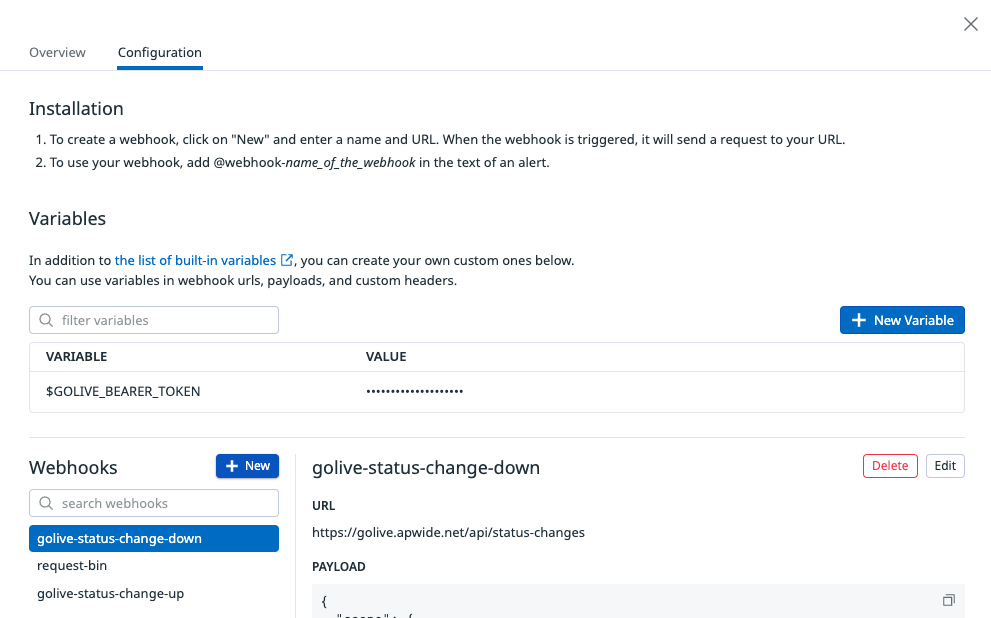

The 2 webhooks created in STEP 3 and in STEP 4 should now appear in your “Webhooks” list:

Memorize the name of these 2 webhooks. They will be used in following steps.


Enable monitoring of an Environment

STEP 1 Create a new Golive Environment and get its ID

Connect to Golive and create a new Golive environment that you will use to test this integration.

Learn how to create a new environment here: Manage Environments

Memorize the id of the environment that you want to use to test this integration.

In current example, the id of this environment is 28.

STEP 2 Create a new Synthetic Test

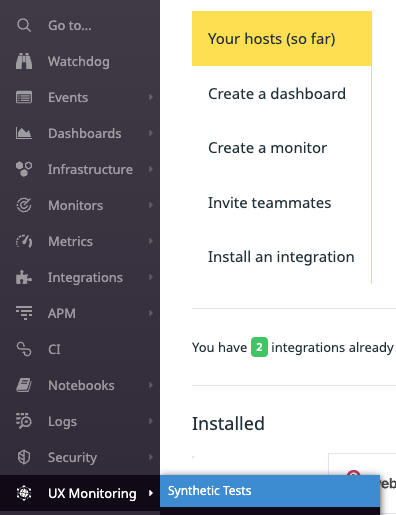

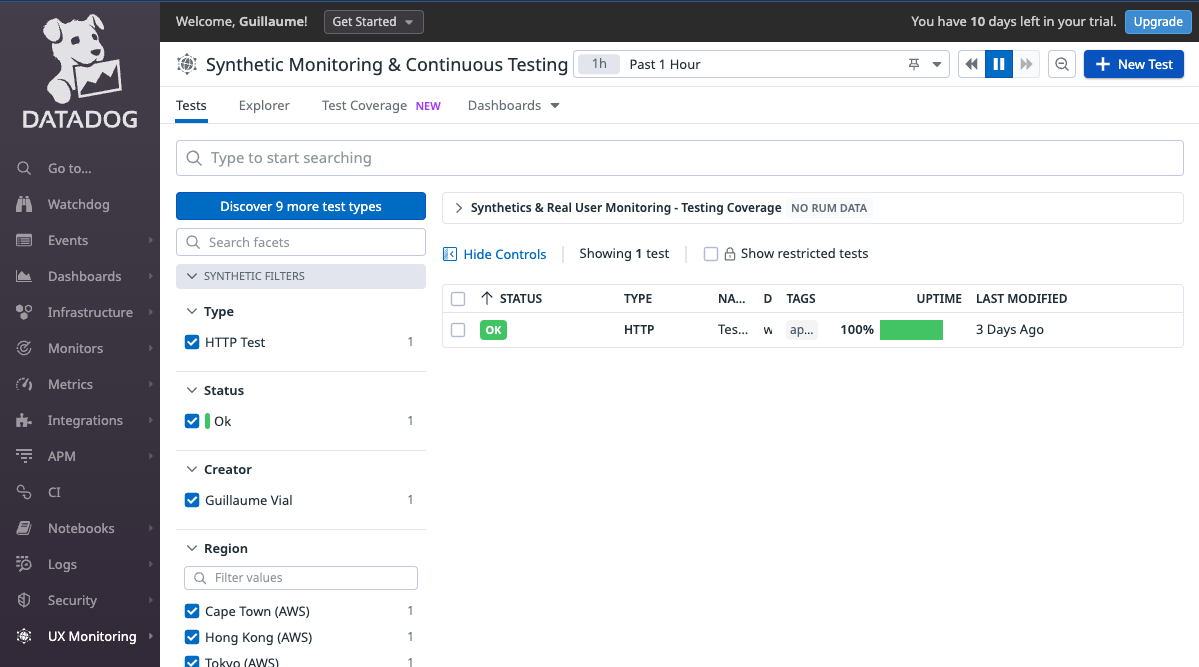

Connect to Datadog, click on “UX Monitoring” and select “Synthetic Tests” in order to create a new url tester:

STEP 3 Create a new Synthetic Test

Click on “New Test” buton top right:

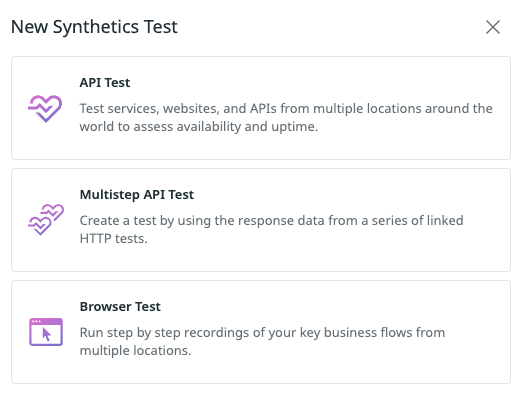

Select “API Test”:

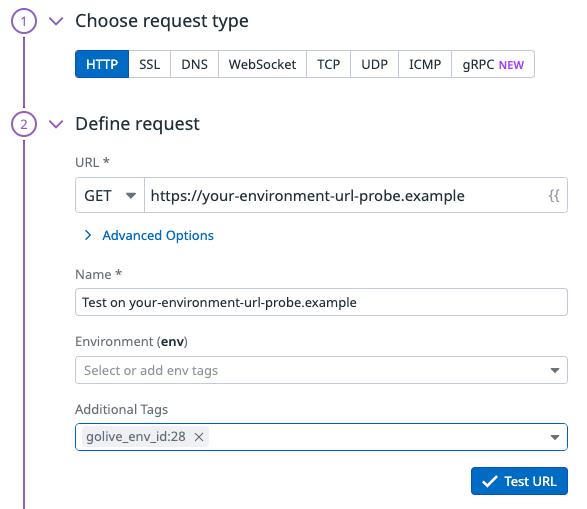

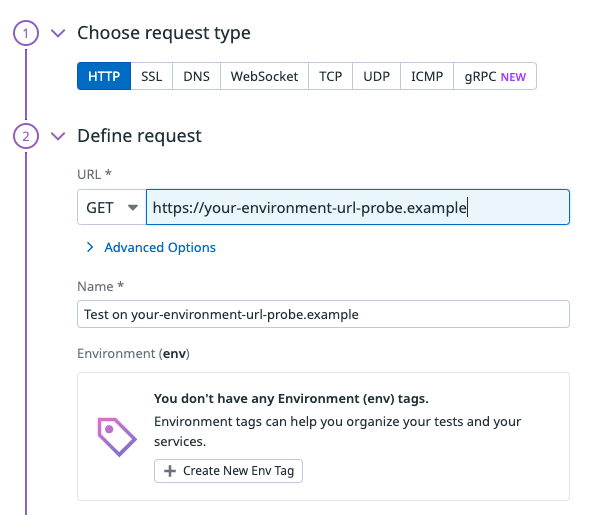

Set the url that you want to use to check availability of your environment and click on “Create new Env Tag” button:

You must add a tag called “golive_env_id” containing the id of the Golive environment that is monitored
Ex: golive_env_id:28 (without space, where 28 should be replaced by your own Golive environment id):

Click on “Test URL” button

STEP 4 Select locations

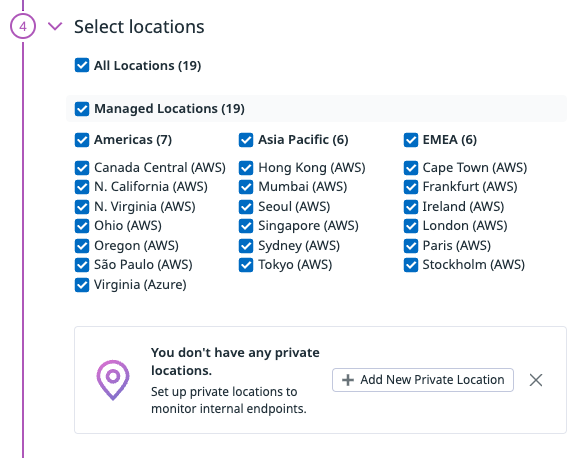

Click on “All Locations” to select all locations:

If you want to test an environment that is not directly reachable from Internet, you should configure a “Private Location”: https://docs.datadoghq.com/getting_started/synthetics/private_location/

STEP 5 Configure the alert monitor

Let all default setup in the next steps until you enter the “Configure the monitor for this test” step:

Copy the following code snippet:

CODE
{{#is_alert}} @webhook-golive-status-change-down {{/is_alert}}
{{^is_alert}} @webhook-status-changes-up {{/is_alert}}

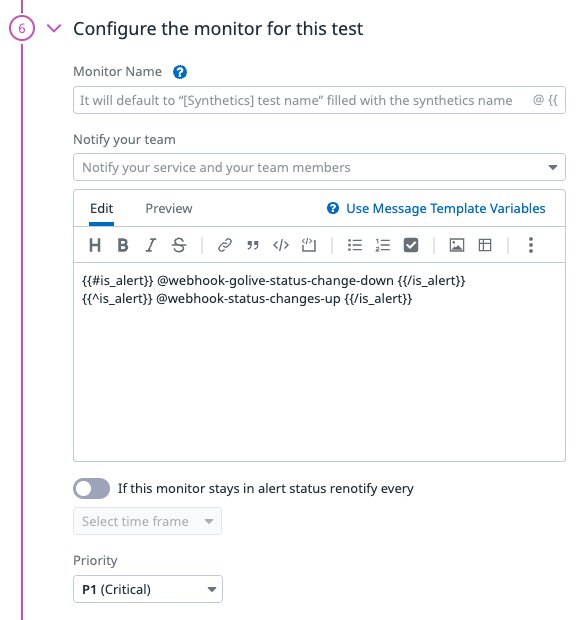

Paste the code snippet into the Template editor and check that you get such a configuration:

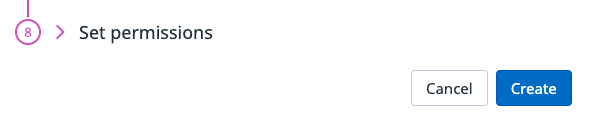

Scroll down and click on “Create” button in order to save your new test:

You have configured your first monitoring of a Golive environment!

You can repeat these steps to create a synthetic test for each of your Golive Environments.


Test your Synthetic Test

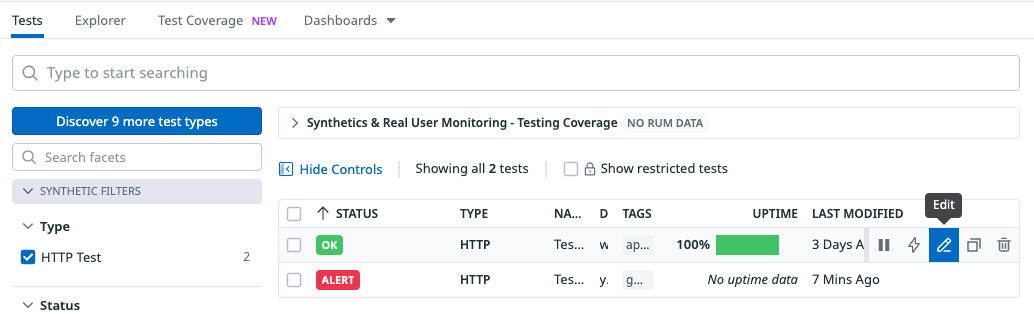

Select the Synthetic test you want to test and click on “Edit”:

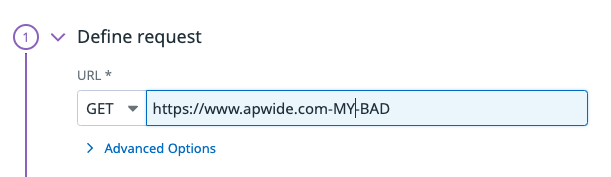

Replace the right URL by a fake one:

Click on “Save” button:

Click on “Run Test Now” button:

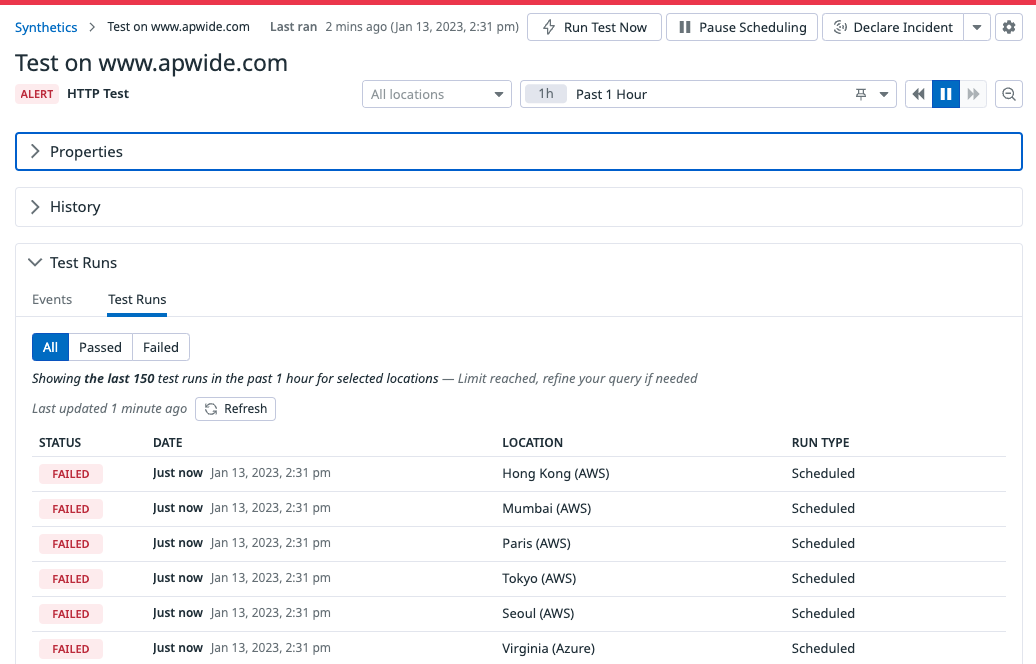

Wait for 1-2 minutes, the test should now fail:

Connect to Golive and check that the status of your environment is now “Down” in Golive.

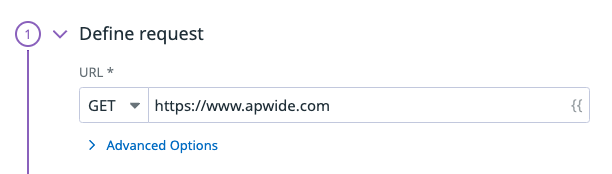

Put back the right URL:

Click on “Save” button:

After a while, check that the status of your environments is “Up” again in Golive.
